| Product Name: | Fiber Optic PLC Splitter | Application: | FTTH FTTB FTTX PON CATV |
|---|---|---|---|
| Operating Temperature: | -40~+85℃ | Wavelength: | 1310nm/1550nm |
| Item: | High Quality Plc Splitters | Fiber Type: | G657A |
| Highlight: | fiber optic cable splitter,fiber optic coupler splitter |
||

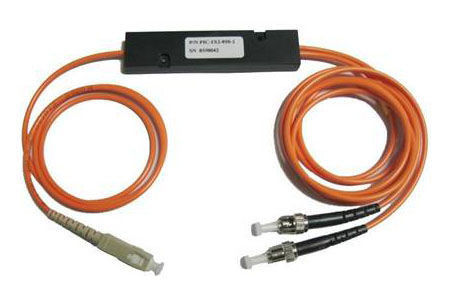

Multimode Fiber Optic Splitter used in LAN, PON, and Optic-fiber Sensors
The Multimode Fused Fiber Couplers are designed by cascade basic units to eliminate the module sensitivity. It can be widely used in LAN, PON, and Optic-fiber Sensors.
Specification:
| Type | Multimode Standard Fiber Couplers | |
| Coupling Ratio(% ) | 50/50 | |
| Grade | P | A |
| Excess Loss(Typ.) | 0.8 | 1.0 |
| Max. Insertion Loss(dB) | 3.9 | 4.1 |
| Uniformity(Max)(dB) | 0.6 | 0.8 |
| Directivity(dB) | ≥40 | |
| Operating Wavelength(nm) | 600~1600 | |
| Central Wavelength(nm) | 850, 1310 or 850/1310 | |
| Operating Temperature(ºC) | -40~+85 | |
| Fiber Type | Corning Multimode 50/125, 62.5/125 Fiber | |
| Fiber Pigtail Length(m) | 1 or Customer on Request | |
| Port Configuration | 1X2 or 2X2 | |
| Package Dimension(mm) |
A, B, C, D, M |
|
