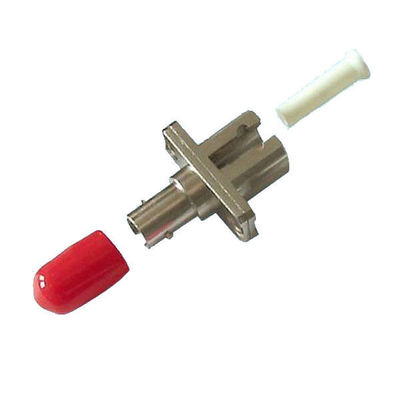

Copper Alloy Single Mode To Multimode Fiber Adapter ST To LC Ear / No Ear Type

: Large Image : Copper Alloy Single Mode To Multimode Fiber Adapter ST To LC Ear / No Ear Type

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015 , RoHS
Model Number:	LC/ST SX

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Operating Temperature:	-40~+75℃	Product Name:	Fiber Optic Adapter
Application:	FTTH FTTB FTTX Network	Type:	Single Mode/ Multi-mode
Insertion Loss:	≤0.2dB	Return Loss:	>55dB,50db,>60db
Highlight:	fiber optic cable adapter , optical digital audio cable adapter

Singlemode Fiber Optic Adapter Network St To Lc Fiber Adapter

Ordering Information:

For example:LC-ST, single mode, SX hybrid adapter
Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule end-face: PC,UPC,APC
Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
Appearance: with ear type, no ear type;
Material: copper alloy, zinc alloy, plastic.

Description:

Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:
