LC / PC Multimode Fiber Optic Adapter Ceramic Sleeve Material High Stability

Large Image : LC / PC Multimode Fiber Optic Adapter Ceramic Sleeve Material High Stability

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015 , RoHS
Model Number:	LC Adapter

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	plastic Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Type:	Single Mode/ Multi-mode
Application:	FTTH FTTB FTTX Network	Insertion Loss:	≤0.2dB，≤0.3dB
Durability:	>1000time	Operating Temp:	-40~75°C
Highlight:	optical digital audio cable adapter , fiber optic connector adapters

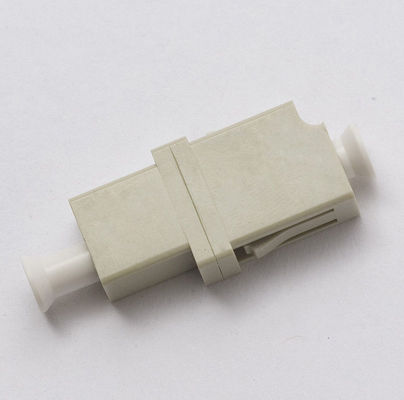

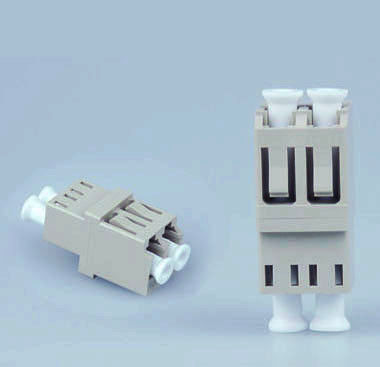

LC / PC Multimode Fiber Optic Adapter Simplex Or Duplex Optical Cord Adapter

Material:

Ceramic Sleeve, Pink Plastic Housing, Steel Shell.

Features:

LC mode used pluggable tight locking structure
Low insertion loss,high stability
Good in repeatability and exchangeability

Application:

￭ Fiber optic communication network
￭ Optical broadband process network
￭ CATV syetem ; Optical instrumentation network
￭ Optic LAN
￭ Adapter docking

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85
