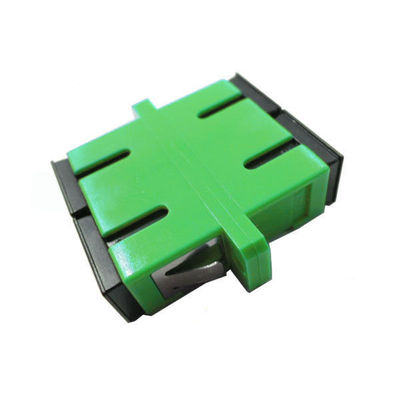

Stable Optical Connection Adapter , SC / APC SM DX Tv Optical Cable Adapter With Flange

: Large Image : Stable Optical Connection Adapter , SC / APC SM DX Tv Optical Cable Adapter With Flange

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	ISO9001:2015 , RoHS
Model Number:	SC/APC DX adapter

Payment & Shipping Terms:

Minimum Order Quantity:	100PCS
Price:	Negotiation
Packaging Details:	plastic box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Product Name:	Fiber Optic Adapter	Insertion Loss:	≤0.2dB，≤0.3dB
Application:	FTTH FTTB FTTX Network	Durability:	>1000time
Operating Temperature:	-40~+75℃	Storage Temperature:	- 45~+85℃
Highlight:	fiber optic cable adapter , fiber optic connector adapters

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Products introduction:

Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:

Low insertion loss;
Good repeatability and interchangeability;
Good environmental stability.

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85
