Product Details:
Payment & Shipping Terms:
|
| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Pigtail |
|---|---|---|---|
| Wavelength: | 1310/1550nm | Operating Temperature: | -40 To 75℃ |
| Storage Temperature: | -45 To 85℃ | Jacket Material: | OFNP,PVC,LSZH |
| Highlight: | single mode fiber pigtails,sc apc pigtail |
||
► Introduction:
The pigtail is divided into tail multimode fiber and single-mode fiber.
Multimode fiber tail is orange, the wavelength of 850Nm, the transmission distance is 500m, used for short distance interconnection.

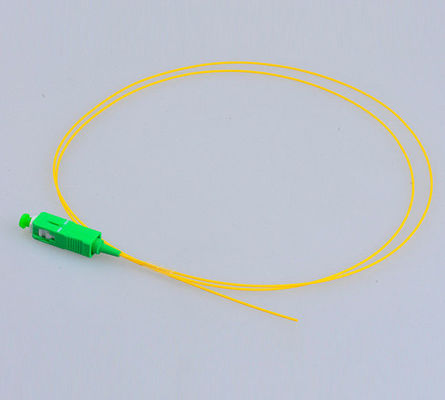

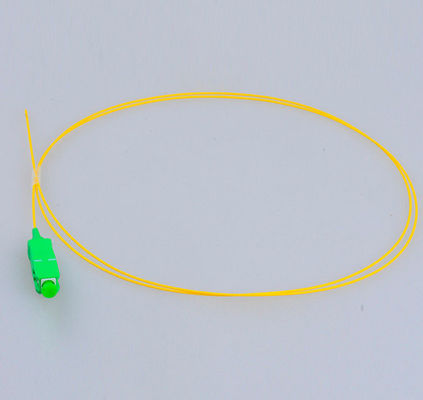

Single-mode pigtail is yellow, there are two kinds of wavelength, 1310Nm and 1550Nm, transmission distance 10km and 40km respectively.
►Characteristics:
•Low insertion loss,high return loss;
•High credibility and stability;
•Fiber cores: 4, 6, 8, 12, 24, 48……
•Joint Specification: FC, SC, ST, LC;
•Cable material: PVC, OM1, OM2 or Om3 can be chosen
•In Complying with customer's request, we could design and produce pigtails in all kinds of specifications and models.
►Order information:
•Fiber cores: 1, 4, 8, 12, 16... cores
•Diameter:0.9, 2.0, 3.0mm
•Length:1m, 2m, 3m to 120m
•Fiber: SM/OM1/OM2/OM3/OM4
•Material of jacket: PVC/LSZH/OFNR
•Connector: FC, SC, ST, LC, MU, MTJR, MPO, E2000
►Technical Parameter:
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 | ||||||||
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | ||||||||
