Product Details:
Payment & Shipping Terms:
|
| Material: | PC+ABS | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Product Name: | Fiber Optic Termination Box | Sample: | Free Sample Available |
| Working Temperature: | -40~+80ºC | Insertion Loss: | ≤0.2dB |
| Highlight: | optical fiber distribution cabinet,fiber optic distribution box |
||

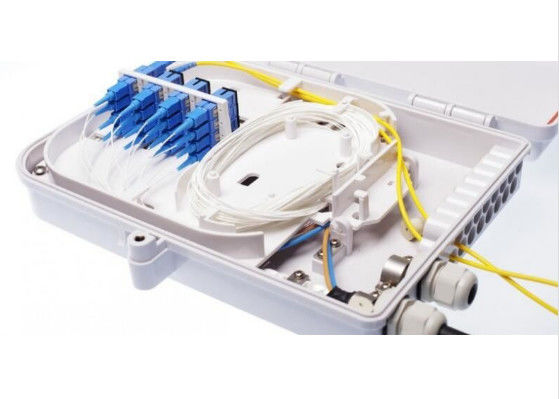

Waterproof ABS Material 16 Port Fiber Optic Termination Box
Description
The Fiber Termination Box is designed specifically for FTTX network building.
can be done fiber splicing ,splitting, distribution in this distribution box,
it is well suited for indoor or outdoor use.
Applications
Specifications
| Environmental requirement | Working temperature:-40~+80ºC | Relative humidity:≤85%(+30ºC) | Atmospheric pressure:70Kpa~106Kpa | |
| Main technical datasheet | Insertion loss:≤0.2dB | UPC return loss:≥50dB | APC return loss:≥60dB | Life of insertion and extraction:>1000 |
| Thunder-proof technical datasheet | The grounding device is isolated with the cabinet, isolation resistance is less than 2x104 MΩ/500V(DC); IR≥2x104MΩ/500V | |||
| The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover;U≥3000V | ||||
| Dimensions(L*W*H)mm | 250×200×72 | |||
| Installation | Wall mounting(indoor/outdoor) Pole Mounting | |||
| Level of protection | IP65 | |||
| Cable Entries | Supporting uncut | |||
| Weight | 1.0kg | |||
| No. of Adaptor & Splitter | 1*16 PLC splitter/SC 8 CORES/Duplex LC8 cores | |||
| Max. Capacity of Fiber | 16 fibers | |||
| Max. Capacity of Splice | 16 cores | |||
