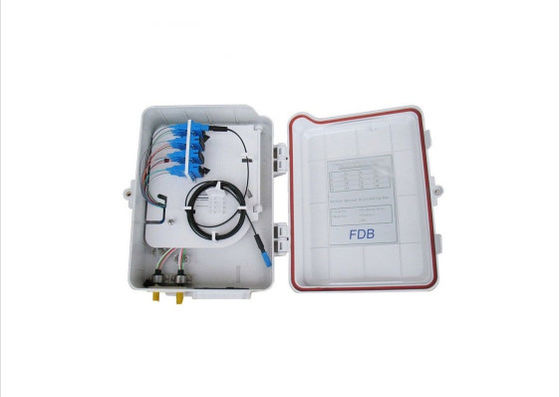

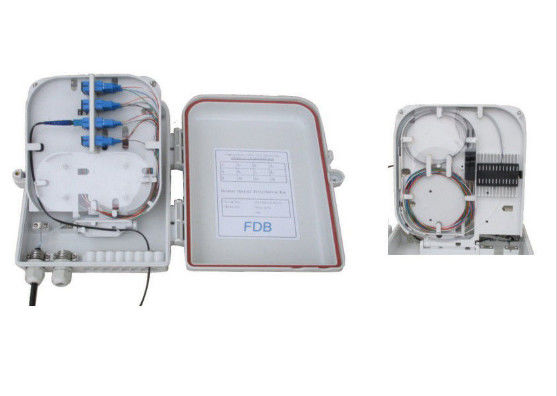

1 x 16 Splitter Fiber Optic Termination Box SC UPC Connector For CATV Networks

Large Image : 1 x 16 Splitter Fiber Optic Termination Box SC UPC Connector For CATV Networks

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	J&K
Certification:	Rohs

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Carton Box
Delivery Time:	3~5days
Payment Terms:	L/C, T/T

Contact Now

Detailed Product Description

Material:	PC+ABS	Application:	FTTH FTTB FTTX Network
Product Name:	Fiber Optic Termination Box	Color:	White
Sample:	Free Sample Available	With Adapter:	Adapter
Highlight:	optical fiber distribution cabinet , fiber optic distribution box

16 Port SC UPC Connector Fiber Optic Termination Box 1x16 Splitter Box

Features

Industry Standard User Interface, be made of high impact plastic.
Can accommodate 1x8 & 1X16 PLC splitter.
Anti-UV, Ultra violet resistant and rainfall resistant.
Up to 16 FTTH drops.
Wall and pole mountable.
l 2 inlet ports, 16 outlet ports.

Applications

widely used in FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks

Specifications

Model	Capacity	Size
FDB-0216A	16 port	260mm(W)x320mm(D)x90mm(D)

Packing information

Model

N.W

(kg/pcs)

Dimension of outer

carton (mm)

G.W of outer Carton

(kg/carton)

No of Products

(pcs/carton)

FDB-0216A

1.85

550*355*620

16.1

1 x 16 Splitter Fiber Optic Termination Box SC UPC Connector For CATV Networks
