| Application: | FTTH FTTB FTTX Network | Product Name: | Fiber Optic Fast Connector |
|---|---|---|---|
| Return Loss: | ≥ 60dB | Insertion Loss: | ≤0.3dB |
| Operating Temperature: | -40℃to85℃ | Durability: | ≤ 0.2db Max |
| Highlight: | field installable fiber optic connector,field assembly optical connector |
||

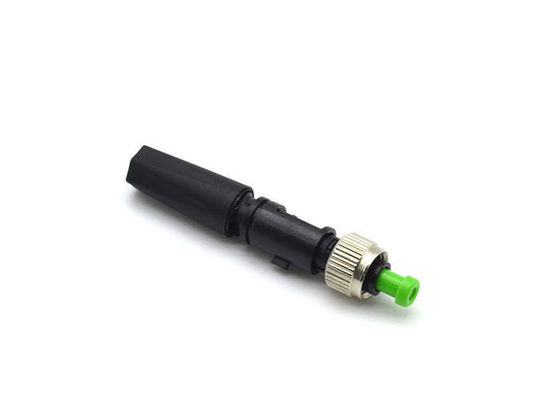

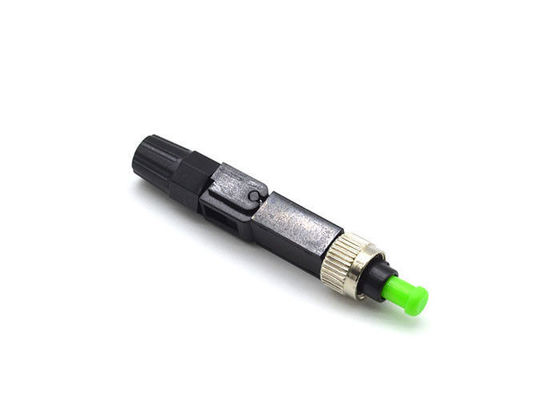

FC APC Fast Connector/Field Assembly Connector manufactured by Carefiber Group Co., Limited has been factory-polished to eliminate the need of hand polishing in the field. The Fast Connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. It is possible to improve the flexibility of optical wiring design as well as reducing the time required for fiber termination
1. Specification:
Pre-stubbed, factory-polished ferrule
No epoxy required
Precision mechanical alignment insures low loss
3.0 mm, 2.0 mm and 900µm boot provided with each connector on the SC LC FC connectors;
Meets TIA/EIA 568A performance requirements
2. Features:
Field installable high reliability connector
RoHS compliant for all all fiber fast connectors material
3. Application:
Premise environments
Connections at the desk for LAN environments
Direct equipment termination
FTTx applications
Repair and replacement requirements
Equipment test leads
4. Technical Data
| Item | Parameter | |
| Single-mode | Multi-mode | |
| Insertion Loss | ≤0.3dB | |
| Durability | 0.2dB Max. | |
| Operating Temperature | -40℃~+85℃ | |
| Storage Temperature | -40℃~+85℃ | |
